How Is Magnet Pull Force Measured?
Learn how magnet pull force is measured, which test conditions change the result, and why pull force is not the same as a safe working load.
On this page
Pull force is useful to a buyer only when it is tied to a repeatable test method. A number without its conditions cannot be compared reliably across samples, suppliers, or product designs.
What does “pull force” mean?
In a common magnet-to-steel test, a magnet or magnetic assembly is placed against a flat steel target. A calibrated force gauge then pulls the specimen perpendicular to the target surface until separation. The highest force recorded immediately before release is the peak breakaway force.
That definition is narrower than the everyday phrase “how much the magnet holds.” It does not automatically describe:
- side loading or sliding resistance;
- peel or edge-loading behavior;
- impact, shock, vibration, or dynamic lifting;
- attachment to curved, rusty, painted, thin, or low-permeability steel;
- a working load limit for a lifting device.
Surface field measurements in gauss or tesla are also different. A gaussmeter measures magnetic flux density at a location; it does not directly measure the force required to separate a complete magnetic circuit.

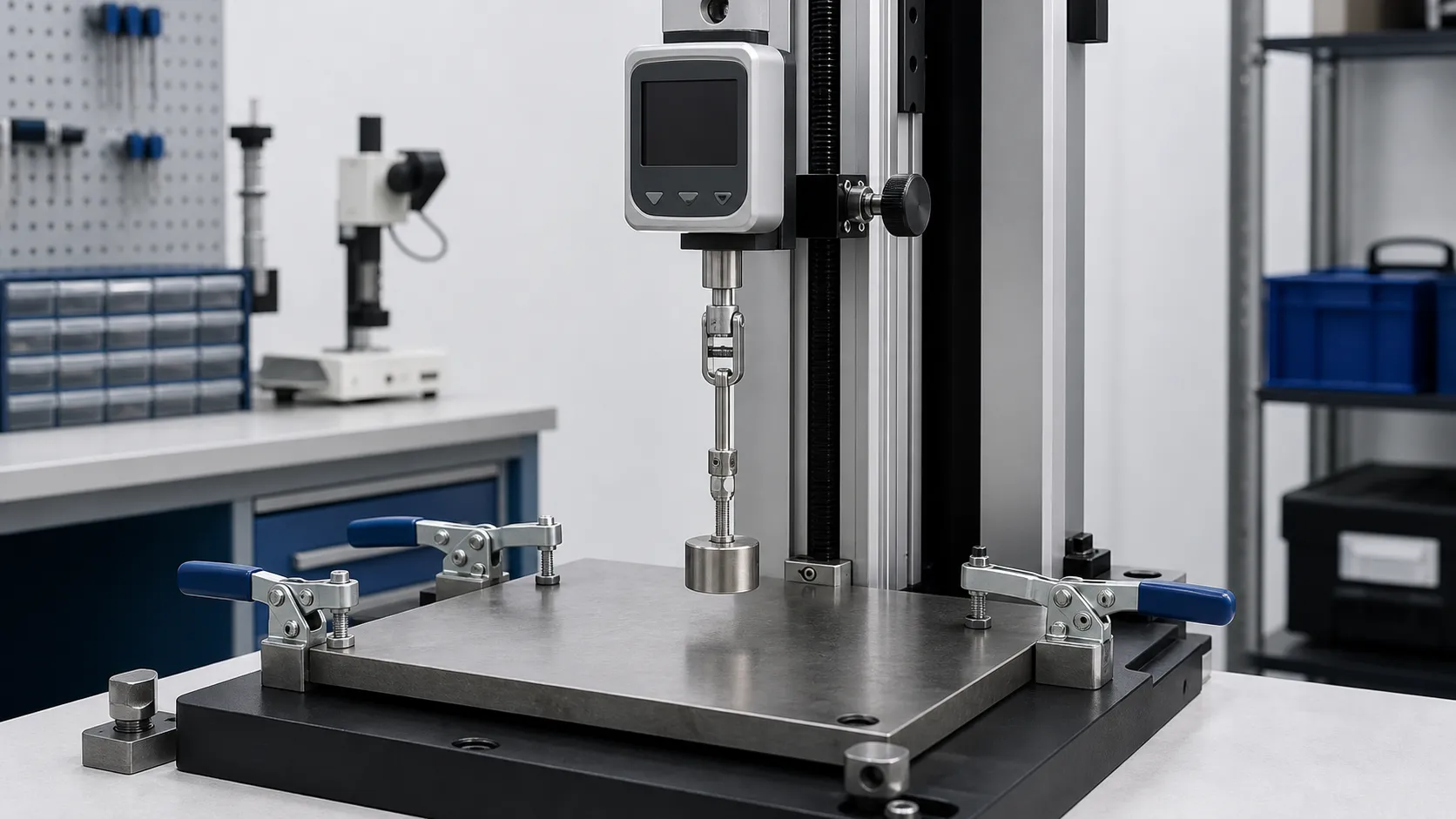

A practical pull-force test setup
A controlled test normally includes:
- A calibrated force gauge and test stand. The stand should keep the loading direction stable and reduce operator-dependent movement.
- A defined specimen. Record the magnet or assembly drawing, material grade, coating, magnetization direction, dimensions, and sample identification.
- A defined target. Record the steel type, width, length, thickness, surface finish, flatness, coating, and cleanliness.
- A controlled contact condition. State whether the specimen has direct contact or a deliberate nonmagnetic gap.
- Axial alignment. Pull through the intended centerline so that unintended peel or bending does not dominate the reading.
- A stated pull rate and temperature. Both should remain consistent throughout the comparison.
- Repeated measurements. State the number of specimens and cycles, then report the individual results or at least minimum, average, and maximum values.
K&J Magnetics describes a supplier-specific “Case 1” test using a single magnet, a thick ground flat steel plate, a digital force gauge, and the peak value from separation. Its published values average five samples. That is a useful example of a documented method, but it is not a universal method for every magnet assembly or buyer requirement.
Test conditions that materially change the result
| Input | Why it matters | What the report should state |
|---|---|---|
| Target steel | Steel composition and permeability affect the magnetic circuit | Material or controlled reference plate |
| Target thickness and area | A small or thin target can saturate and reduce usable force | Length, width, thickness, and geometry |
| Surface condition | Paint, plating, rust, scale, roughness, and curvature create separation or incomplete contact | Finish, coating thickness, flatness, and cleanliness |
| Air gap | Magnetic force can fall rapidly as separation increases | Nominal gap and gap material |
| Load direction | Direct pull, shear, and peel produce different results | Direction and fixture diagram |
| Magnet orientation | Pole direction and assembly geometry control the flux path | Magnetization direction and mounting arrangement |
| Temperature | Magnet output and coercivity change with temperature | Specimen and ambient temperature |
| Pull rate | A different separation speed can alter a dynamic reading | Test-stand speed or controlled procedure |
| Samples and cycles | One result does not show variation or repeatability | Sample count, cycle count, minimum, average, maximum |
| Gauge and fixture | Capacity, calibration, stiffness, and alignment affect confidence | Gauge model/range, calibration status, fixture description |
The steel target deserves special attention. K&J’s published work on steel thickness shows why a sufficiently large and thick plate is needed when the objective is to measure a magnet’s maximum direct-pull potential. A buyer’s actual bracket or sheet may produce a lower result.
Direct pull is not shear holding
Direct pull loads the magnet normal to the contact surface. Shear loads act parallel to that surface and are strongly affected by friction, surface finish, clamping details, and mechanical stops.
A high perpendicular breakaway result therefore does not guarantee equivalent resistance to sliding. If the application is wall mounting, vehicle mounting, or another side-loaded condition, test the actual mounting arrangement in the relevant direction.
Pull force is not a safe working load
A peak laboratory pull value must not be presented as a safe lifting capacity by itself.
Material lifting introduces additional risks: imperfect contact, thin workpieces, bending plate, rough or coated steel, off-center loading, shock, wear, temperature, operator behavior, and consequences of failure. A lifting-magnet product needs its own rated lifting capacity or working load limit, documented safety factor, suitable-material limits, minimum steel thickness, operating method, inspection criteria, and safety instructions.
If those approved records do not exist, the responsible entry is “Request engineering review”, not an invented conversion from pull force to lifting capacity.
How a B2B pull-force report should read
A useful report makes the result auditable. At minimum, include:
- part number, revision, lot, and sample quantity;
- magnet material grade, coating, geometry, and magnetization;
- assembly construction and contact-face dimensions;
- target material, dimensions, thickness, surface condition, and coating;
- direct pull, shear, magnet-to-steel, or magnet-to-magnet configuration;
- air gap or separator thickness;
- force gauge, fixture, calibration status, pull rate, and temperature;
- units, individual readings, minimum, average, and maximum;
- photos or a fixture drawing;
- reviewer, date, and approval status.
Use newtons as the primary engineering unit where practical. If lbf or kgf is supplied for a target market, label it explicitly and retain the original measured unit in the report.
What to send with an RFQ
For a meaningful comparison, send the application, mating-steel details, load direction, available contact area, operating temperature, environment, target force, safety expectations, quantity, and any required validation standard. A drawing or simple cross-section often prevents more misunderstanding than a larger headline pull-force number.
Discuss a test requirement with FINDMAG or review the inputs used for a custom magnetic project.
Technical references
- K&J Magnetics — Magnet FAQ: pull-force test configurations
- K&J Magnetics — Testing Magnet Strength
- K&J Magnetics — Steel Thickness and Magnetic Fields
- Dura Magnetics — Magnetic Pull Force Explained
These sources describe general test principles and supplier-specific examples. A purchase specification should still define the method and acceptance criteria for the exact product.
Buyer questions
Frequently asked questions
Is pull force the same as the weight a magnet can safely lift?
No. A laboratory breakaway value is not a working load limit or rated lifting capacity. Safe material lifting requires a product-specific rating, safety factor, operating instructions, inspection criteria, and validation under the intended conditions.
Why is the measured pull force lower on painted or thin steel?
Paint creates an air gap, while thin steel may not carry the available magnetic flux without saturation. Surface flatness, rust, target size, steel composition, and contact area can reduce the result further.
Should pull force be reported in kilograms?
Force should preferably be reported in newtons, with lbf or kgf stated clearly when needed. Writing only kg is ambiguous because kilograms are a unit of mass, not force.
